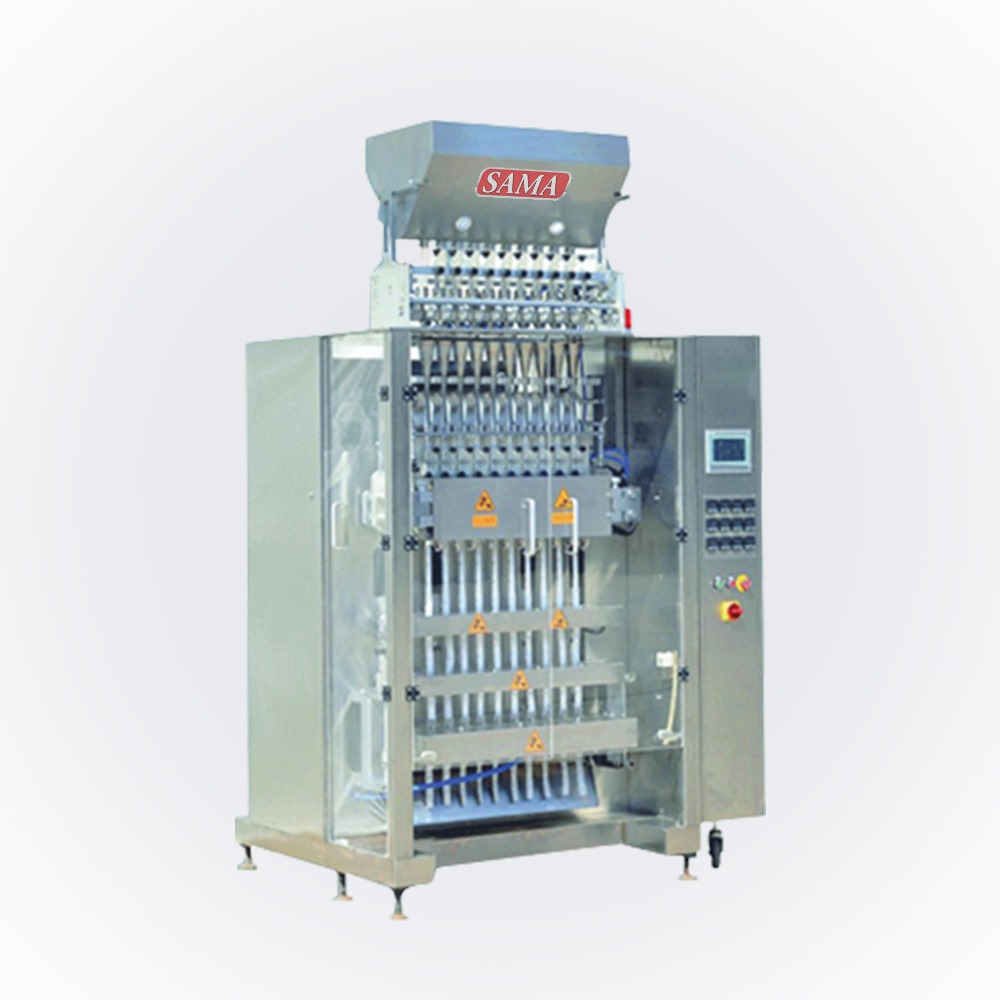

Multilane Stick Packing Machine Universal

SAMA 10L

This multilane stick packing machine can be used for multiple products: liquid, powder, and granules.

...

Up to 40 x 10= bags per mint (depends on your product characteristic paper material & operators ability

2 side / 4 side any other as per URS

Auger Filler/ Liquid Filler/ Volumetric

19 KW

Length 700mm, Width: 720mm

DECRIPTION: -

It is suitable to pack powder materials in the fields of the pharmacy industry, food industry and daily industry. Such as bean powder, milk powder, drug powder, bone-stronger powder, lotus powder and much more.

Characteristic:


1. advanced performance, high strength, low noise, compact structure, stable operation, easy maintenance, long service life

2. The whole machine adopts PLC control, servo tracking synchronous linkage, reliable performance, convenient operation, and a high degree of automatic control.

3. high degree of automation. This machine can complete longitudinal cutting, longitudinal sealing, transverse sealing, filling, printing, notch cutting, and cross-cutting at one time.

4. adopt the combination sealing knife as the sealing mold. Back sealing, upper and lower transverse sealing, alternating multiple times once sealing Sealing tightly. And with high packing speed, pouch shape smoothly, delicate appearance, and high packing efficiency.

5. quick and convenient adjustment. The bag length can be adjusted without changing the mold. And the vertical seal, transverse sealing, filling, cutting and other implementing agencies can be adjusted through the man-machine interface.

6. filling measurement accuracy. In the case of powder materials, it is specially designed with an auger feeder, and each bag can be adjusted conveniently and accurately.

7. in the forming process of the packaging bag through the PLC control, so that each actuator can be accurately positioned.

8. photoelectric tracking system is adopted to ensure the automatic calibration of the packaging bag and has the function of automatic counting.

9. strong adaptability to the package material; the sealing temperature of the machine has the function of automatic control; and the control precision is high (about 1C degrees). Can adapt to domestic and foreign production of a variety of packaging films, such as PET/AL/PE, PET/PE, NY/AL/PE, NY/PE, etc.

10. Additional features can be added, such as the right to cut off the choice of cutting machine, dashed knife, serrated knife, etc. The typing code can be selected (ink wheel printer, etc., and various alarm requirements can be selected.
