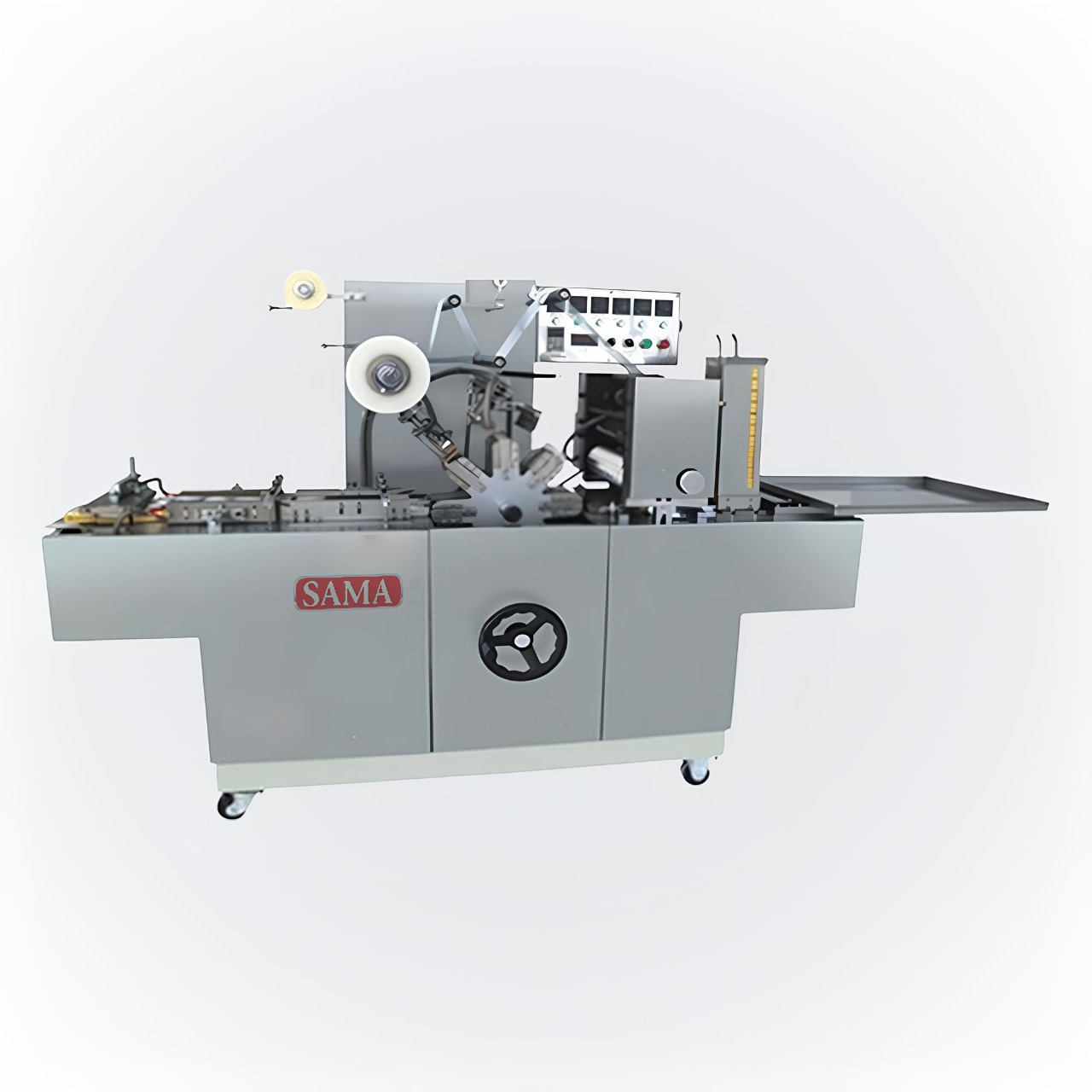

Automatic overwrapping machine NL-100

APPLICATION:

It is used for overwrapping the products like cell phones box, cigrate box, eraser and all type of boxes etc.

DESCRIPTION

•Packing of single,as well as bundles
•CAM driven ensures machine stable running,pneumatic drive auxiliary
•Servo motor control film feed,Siemens PLC control with soft-touch display
•Stain steel 304 machine body and organic glass cover
•GMP standard alumina working plate,flatting and smoothing
•Flexible size ranges and quick change over mould
•Tear tape,ink printer,box turning over and stacking is optional

SPECIFICATIONS

3kw

L 50-320 W 40-220 H 10-110

Approx 500 kgs

220V or 380V

0.4 mpa

2200*950*1800

DESCRIPTION:

•Packing of single,as well as bundles
•CAM driven ensures machine stable running,pneumatic drive auxiliary
•Servo motor control film feed,Siemens PLC control with soft-touch display
•Stain steel 304 machine body and organic glass cover
•GMP standard alumina working plate,flatting and smoothing
•Flexible size ranges and quick change over mould
•Tear tape,ink printer,box turning over and stacking is optional

SPECIFICATIONS

3kw

L 50-320 W 40-220 H 10-110

Approx 500 kgs

220V or 380V

0.4 mpa

2200*950*1800
